Circuit Audio Amplifier F.E.T
This 100W

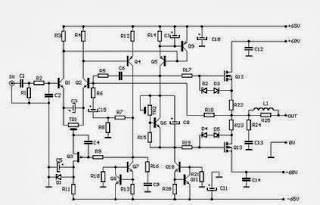

Audio Amplifier design uses two V-MOSFET transistor technology as the output stage, delivering 100W in output, with a 4 Ω load.
It is important that the transistor of the output stage, kept cool by adding a heatsink or fan for example.
For this haigh power fet
amplifier, use two symmetrical power supply.
V max: balanced + / – 65V DC
V max: balanced + / – 60V DC
I max: 6A + / – 65V
I max: 5A + / – 60V
