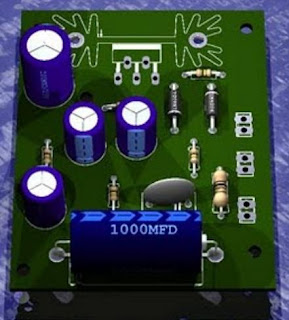

Amplifier TDA2006 Kit
This amplifier circuit is build around the tda2006 integrated circuit who features a short circuit protection system, and a thermal shutdown system in case of overheating.
With a 12v power
supply the circuit delivers 12w on a 4 ohm speaker and 8w on a 8 ohm speaker. The integrated circuit can work with a power supply between 6v and 15v max.
Amplifier TDA2006 Circuit
The TDA2006 is a monolithic integrated circuit in Pentawatt package, intended for use as a low frequency class "AB" amplifier. At ±12V, d = 10 % typically it provides 12W output power on a 4Ω load and 8W on a 8Ω . The TDA2006 provides high output current and has very low harmonic and cross-over distortion.
Further the device incorporates an original (and patented) short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output
transistors within their safe operating area. A conventional thermal shutdown system is also included. The TDA2006 is pin to pin equivalent to the TDA2030
