Circuit Encoder Stereo Multiplexer for fm Transmitters NJM2035
That codifier stereo is for who wants a system of transmission of audio stereo of high quality (hi fi). That integrated circuit produces an excellent and clear audio and a separation of excellent channel comparable with other much more expensive systems.
The heart of the circuit is the ci NJM2035 of the NJr corporation and I say that the lung of the circuit of the encoder stereo is it the crystal of quartz of 38KHz. You don’t need like this to gauge or to do any adjustment.

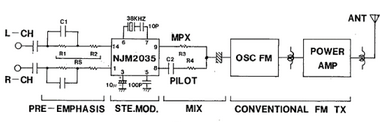

The circuit consists of three blocks: Pré emphasis, digital encoder and mixing apprenticeship.
Pré-emphasis of 75 µS uses a resistor of 47 k and two capacitores of 1 nF.
The second block is inside of NJM2035, it is a digital codifier
The third block is the mixer and it consists of the capacitores of 33µF and 100nF and the resistores of 82k and 10k. The objective of that circuit is multiplexar the subportadora and the pilot sign. The sign MPX comes out for CI NJM2035 pin 9. The pilot sign comes out for the pin 8 in the frequency of 19 KHz.
