In professional audio, a mixing console, or audio mixer, also called a sound board or soundboard, is an electronic device for combining (also called "mixing"), routing, and changing the level, timbre and/or dynamics of audio signals. A mixer can mix analog or digital signals, depending on the type of mixer. The modified signals (voltages or digital samples) are summed to produce the combined output signals.
Mixing consoles are used in many applications, including recording studios, public address systems, sound reinforcement systems, broadcasting, television, and film post-production. An example of a simple application would be to enable the signals that originated from two separate microphones (each being used by vocalists singing a duet, perhaps) to be heard through one set of speakers simultaneously. When used for live performances, the signal produced by the mixer will usually be sent directly to an amplifier, unless that particular mixer is "powered" or it is being connected to powered speakers.

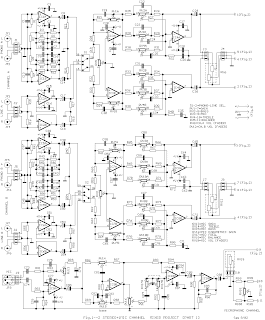

Channel input strip
The input strip is usually separated into these sections:
- Input jacks / microphone preamplifiers
- Basic input controls
- Channel EQ (High, Mids and low)
- Routing Section including Direct Outs, Aux-sends, Panning control and Subgroup assignments
- Input Faders
On the Yamaha Console above, these sections are color coded for quick identification by the operator. Each signal that is input into the mixer has its own channel. Depending on the specific mixer, each channel is stereo or monaural. On most mixers, each channel has an XLR input, and many have RCA or quarter-inch Jack plug line inputs.
Channel equalization
Further channel controls affect the equalization (EQ) of the signal by separately attenuating or boosting a range of frequencies, e.g., bass, midrange, and treble. Most large mixing consoles (24 channels and more) usually have sweep equalization in one or more bands of its parametric equalizer on each channel, where the frequency and affected bandwidth of equalization can be selected. Smaller mixing consoles have few or no equalization controls. Care must be taken not to add too much EQ to a signal that is already close to clipping; additional energy will overdrive the channel.
Some mixers have a general equalization control (either graphic or parametric) at the output.
Master output controls
Subgroup and main output fader controls are often found together on the right hand side of the mixer or, on larger consoles, in a center section flanked by banks of input channels. Matrix routing is often contained in this master section, as are headphone and local loudspeaker monitoring controls. Talkback controls allow conversation with the artist through their wedges, headphones or IEMs (in-ear monitor). A test tone generator might be located in the master output section. Aux returns such as those signals returning from outboard reverb devices are often in the master section.
Metering
Finally, there are usually one or more VU or peak meters to indicate the levels for each channel, or for the master outputs, and to indicate whether the console levels are overmodulating or clipping the signal. Most mixers have at least one additional output, besides the main mix. These are either individual bus outputs, or auxiliary outputs, used, for instance, to output a different mix to on-stage monitors. The operator can vary the mix (or levels of each channel) for each output.
As audio is heard in a logarithmic fashion (both amplitude and frequency), mixing console controls and displays are almost always in decibels, a logarithmic measurement system. This is also why special audio taper pots or circuits are needed. Since it is a relative measurement, and not a unit itself (like a percentage), the meters must be referenced to a nominal level. The "professional" nominal level is considered to be +4 dBu. The "consumer grade" level is −10 dBV.
