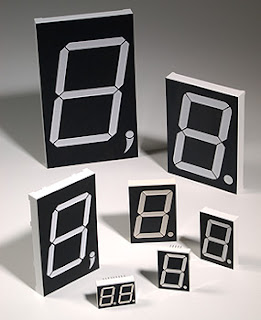

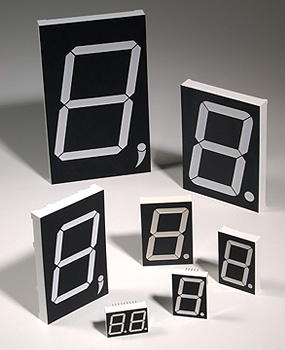

seven-segment display (abbreviation: "7-seg(ment) display"), less commonly known as a seven-segment indicator, is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot-matrix displays. Seven-segment displays are widely used in digital clocks, electronic meters, and other electronic devices for displaying numerical information.
Concept and visual structure
seven segment display, as its name indicates, is composed of seven elements. Individually on or off, they can be combined to produce simplified representations of the arabic numerals. Often the seven segments are arranged in an oblique (slanted) arrangement, which aids readability.
Each of the numbers 0, 6, 7 and 9 may be represented by two or more different glyphs on seven-segment displays.
seven segments are arranged as a rectangle of two vertical segments on each side with one horizontal segment on the top, middle, and bottom. Additionally, the seventh segment bisects the rectangle horizontally. There are also fourteen-segment displays and sixteen-segment displays (for full alphanumerics); however, these have mostly been replaced by dot-matrix displays.
The segments of a 7-segment display are referred to by the letters A to G, as shown to the right, where the optional DP decimal point (an "eighth segment") is used for the display of non-integer numbers.
Implementations
Seven-segment displays may use liquid crystal display (LCD), arrays of light-emitting diodes (LEDs), and other light-generating or controlling techniques such as cold cathode gas discharge, vacuum fluorescent, incandescent filaments, and others. For gasoline price totems and other large signs, vane displays made up of electromagnetically flipped light-reflecting segments (or "vanes") are still commonly used. An alternative to the 7-segment display in the 1950s through the 1970s was the cold-cathode, neon-lamp-like nixie tube. Starting in 1970, RCA sold a display device known as the Numitron that used incandescent filaments arranged into a seven-segment display.
In a simple LED package, each LED is typically connected with one terminal to its own pin on the outside of the package and the other LED terminal connected in common with all other LEDs in the device and brought out to a shared pin. This shared pin will then make up all of the cathodes (negative terminals) OR all of the anodes (positive terminals) of the LEDs in the device; and so will be either a "Common Cathode" or "Common Anode" device depending how it is constructed. Hence a 7 segment plus DP package will only require nine pins to be present and connected.
Integrated displays also exist, with single or multiple digits. Some of these integrated displays incorporate their own internal decoder, though most do not – each individual LED is brought out to a connecting pin as described. Multiple-digit LED displays as used in pocket calculators and similar devices used multiplexed displays to reduce the number of IC pins required to control the display. For example, all the anodes of the A segments of each digit position would be connected together and to a driver pin, while the cathodes of all segments for each digit would be connected. To operate any particular segment of any digit, the controlling integrated circuit would turn on the cathode driver for the selected digit, and the anode drivers for the desired segments; then after a short blanking interval the next digit would be selected and new segments lit, in a sequential fashion. In this manner an eight digit display with seven segments and a decimal point would require only 8 cathode drivers and 8 anode drivers, instead of sixty-four drivers and IC pins. Often in pocket calculators the digit drive lines would be used to scan the keyboard as well, providing further savings; however, pressing multiple keys at once would produce odd results on the multiplexed display.
